An Overview of the Handle System

William Y. Arms

Corporation for National Research Initiatives

Slides from the Handle Server workshop.
Reston VA.
July 27 and 28,1995.

Desirable Properties of Identifiers

General Philosophy

We can not dictate the variety of applications that the handle system must support.

Therefore, we build general purpose system components that will support great variety of systems and applications.

A handle is a pure name. No assumptions are built into the system about the type of object, the use made, or the applications.



naming_authority / locally_unique_string


hdl:// naming_authority / locally_unique_string


date-time stamp
mnemonic name
random string

Elements of the Handle System

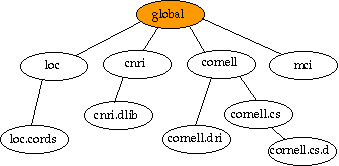

Hierarchy of Naming Authorities

Handle Services are Non-Hierarchical

Handle Servers and Handle Service

Each handle service may be implemented as several handle servers.

A hashing algorithm determines the server used to store a given handle.

The Handle Record

Example 1
Handle Record for an Internet Object
"Object Handle"

Example 2
Handle Record for a Naming Authority
"Authority Handle"

Note: The form of handle for a naming authority is under review.

Example 3
Handle Record for a Local Handle Server
"Service Handle"

Creation of a Naming Authority

The parent naming authority, creates a record in the global handle server containing, for the new authority:

Example 1: Creating a New Handle
in the Home Handle Service

Example 2: Creating a New Handle
in Any Handle Server

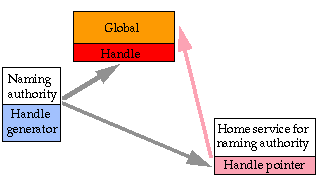

Example 3: Creating a New Handle
in the Global Handle Server

Address Rules

The Global Handle Service stores:
a record for each naming authority. a record for each local handle service

The record for each naming authority includes:
the home handle service for that naming authority.

For each handle, the primary handle service stores:
either the handle record,
or a pointer to the handle service that stores the handle record.

Resolving a Handle Without Caches

Example 1: Handle, cnri.dlib/wya,
in Global, G

Resolving a Handle Without Caches

Example 2: Handle, cnri.dlib/wya,
in Home Service, abc

Resolving a Handle Without Caches

Example 3: Handle, cnri.dlib/wya,
in Handle Service, xyz

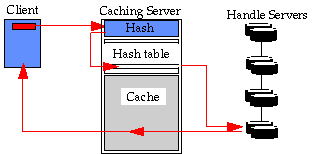

Caching Handle Service

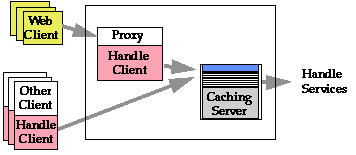

Possible Client Configuration
for an Organization

Click here for further information on Handles and the Handle System.

The Handle System was developed as part of the Computer Science Technical Reports project. Funding has been provided by ARPA and the Library of Congress.

August 2, 1995
